imp005 Breakout Board

Collections: All Products, Breakout Boards

Product type: All Products

Description

Overview

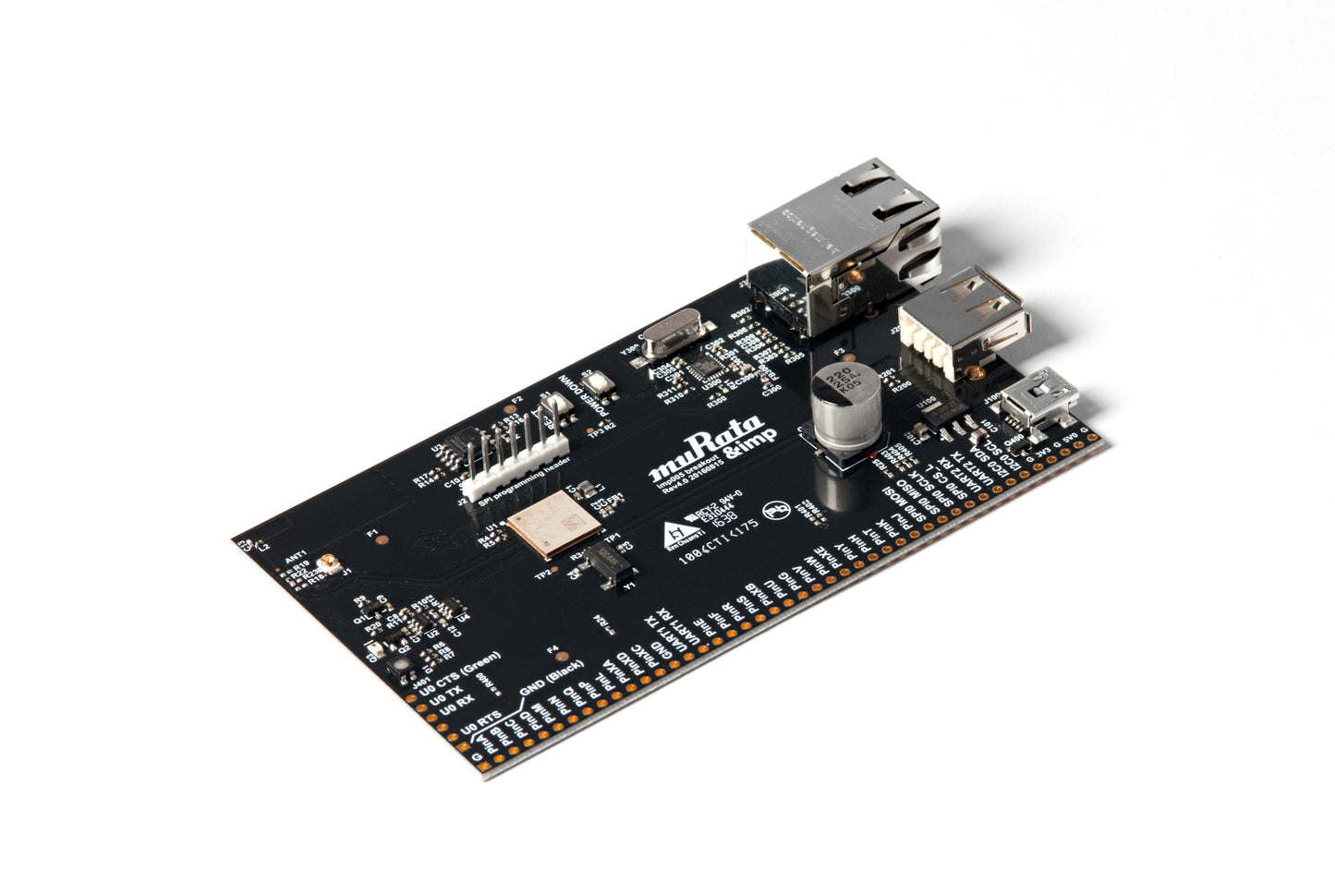

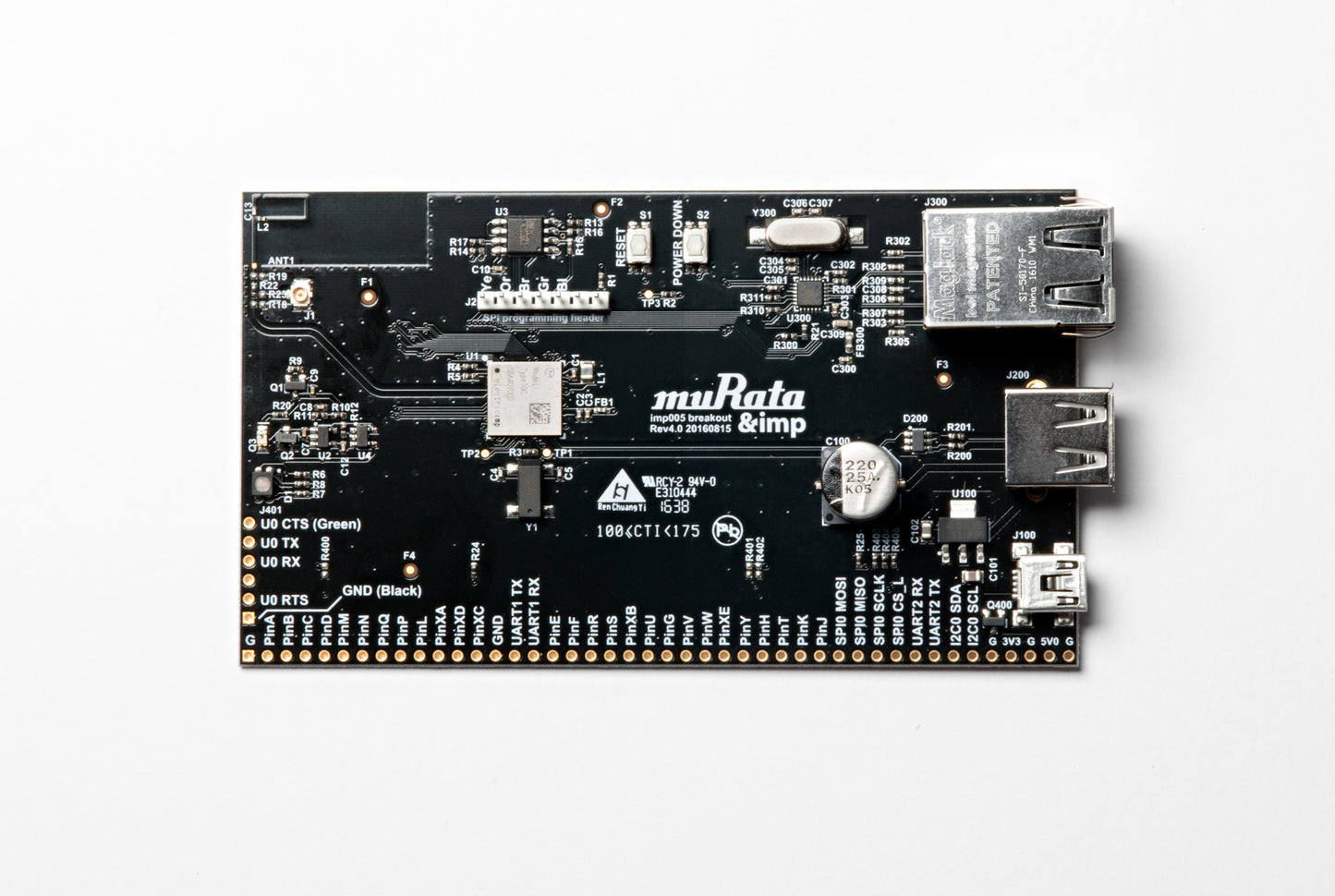

The imp005 Breakout Board provides basic life support for the imp005. The design includes power supply and GPIO breakout for the module, as well as the FCC/IC-approved dual-band (2.4/5GHz) antenna, an ethernet PHY and MagJack®, 32kHz crystal, and QSPI flash containing the impOS image.

Currently out of stock, but available from Digikey and Mouser. The imp005-EZ eval may also be substituted and is available from Arrow Electronics



Product Specifications

Each package comes with one imp005 Breakout Board. The Breakout Board measures 114.0 x 69.0 x 14 mm.

Shipping

Please review our Shipping FAQ page before completing your purchase. Be aware that some shipping times are greater than others. Send us an email with any questions.

Contact Us

For more information on imp005 Breakout Boards, visit our dev center

For orders over 10 units, please contact us for special pricing offers.
