imp004m Breakout Board

Collections: All Products, Breakout Boards

Product type: All Products

Description

Overview

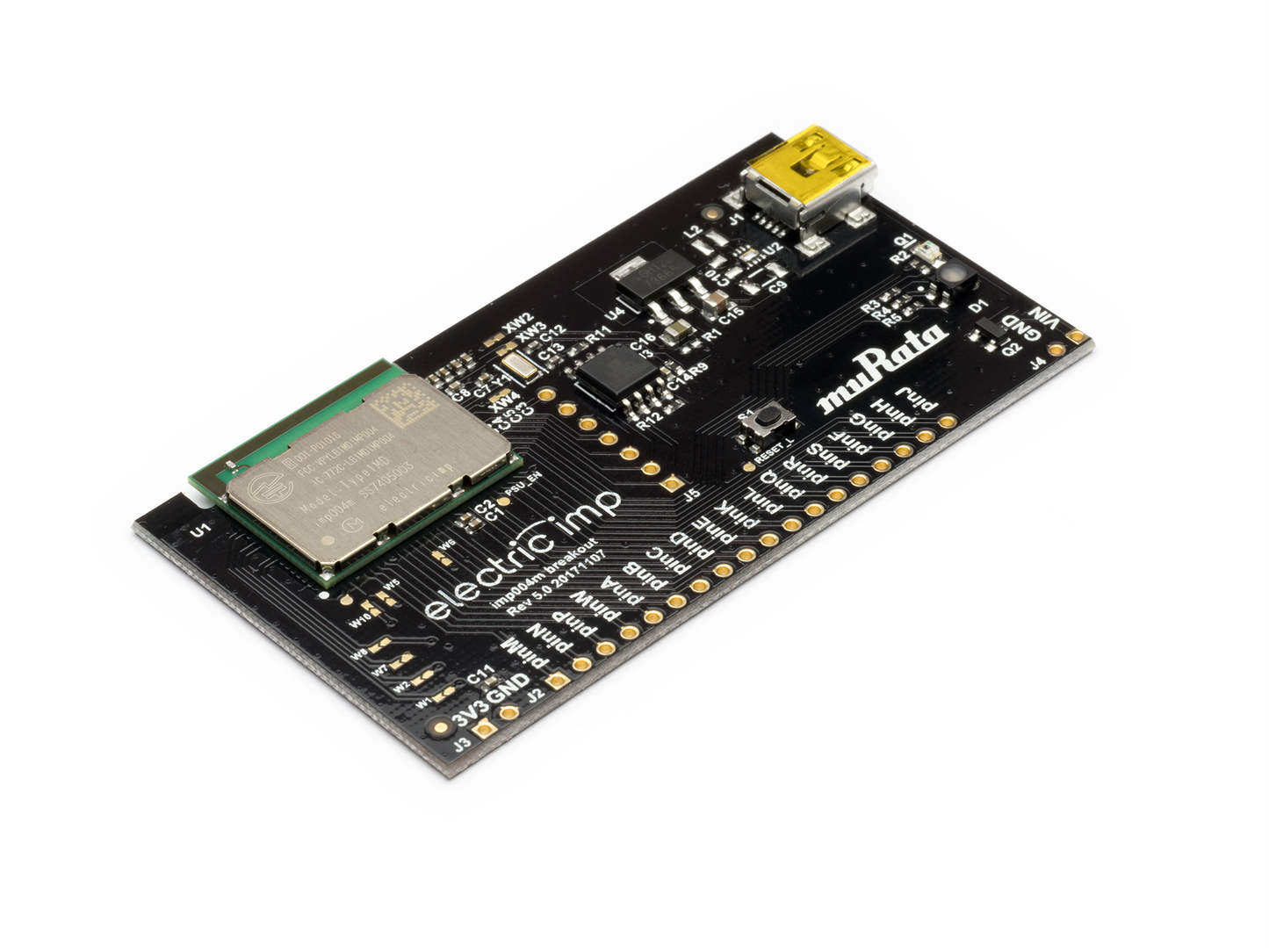

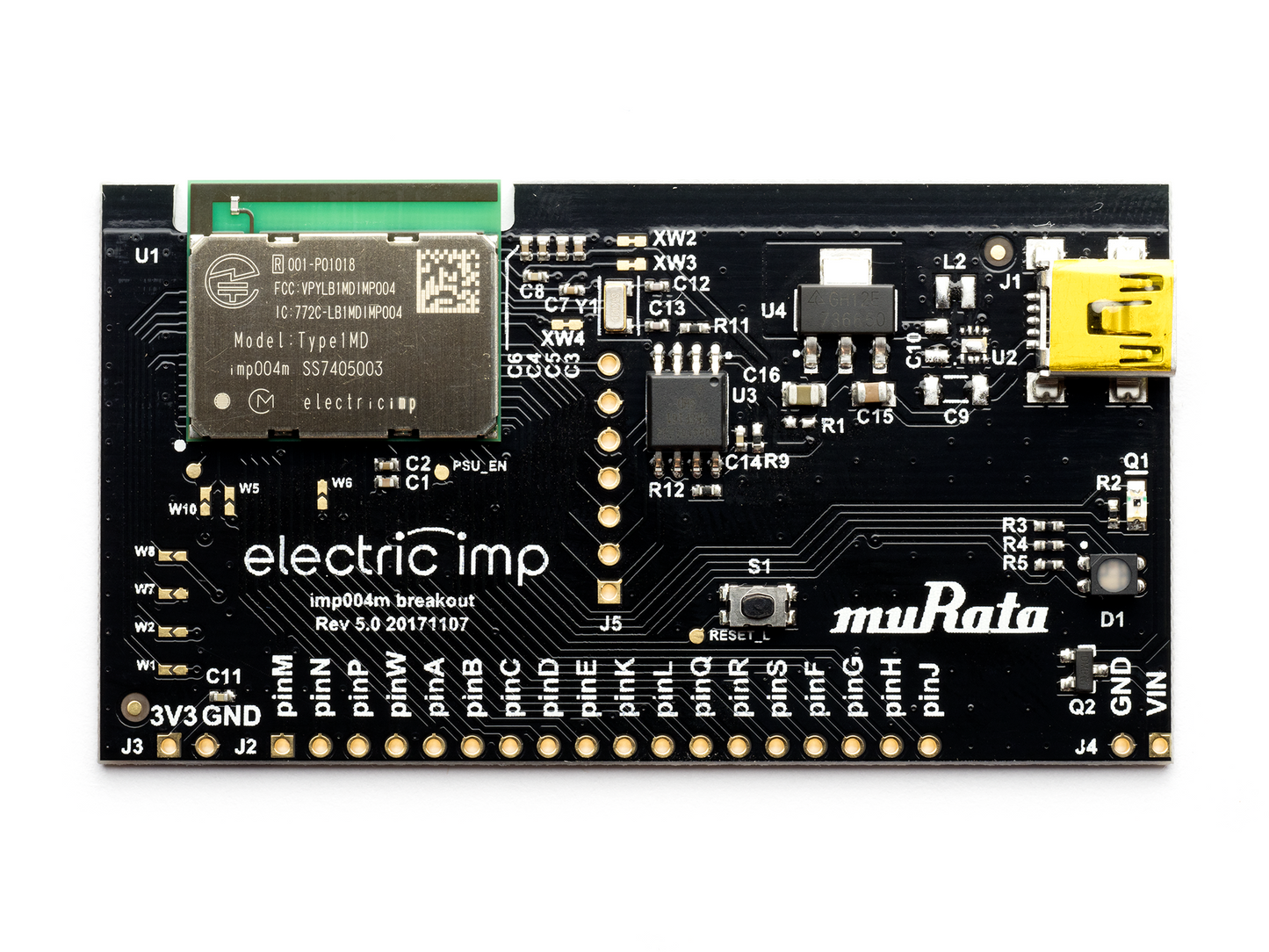

The imp004m Breakout Board provides the imp004m module with a power supply, GPIO breakout, as well as the BlinkUP(TM) circuit and status LED, an optional 32kHz crystal and the required SPI flash containing the impOS image.





Currently out of stock at Electric Imp, but available from Mouser and Digi-Key



Product Specifications

The imp004m Breakout Board integrates a 32-bit processor and WiFi radio into a single module running the impOS for managed secure connectivity and over the air upgradeability. The module is designed for low-power operation and integrates the antenna onto the module allowing for 2 layer non-impedance controlled PCB’s to be used.
  • 802.11 b/g/n 1x1 with onboard antenna Supports WEP, WPA, WPA2, WPS
  • 32-bit Cortex M4 processor
  • Robust embedded operating system with fail-safe firmware updates
  • Virtual machine for customer firmware
  • 256kB of application bytecode flash
  • Over 180kB of dedicated application RAM

The imp004m Breakout Board measures 39.25 x 72.5 x 5.7 mm.

For more information on the imp004m Breakout Board, visit our dev center.
